UHP grade graphite electrodes are mainly used in ultra-high-power electric arc furnaces for steelmaking and other high-temperature metallurgical processes. They conduct a large electrical current into the furnace, creating an electric arc that generates the heat required to melt scrap steel and process metallic materials.
UHP means “Ultra High Power.” Compared with regular-power and high-power graphite electrodes, UHP electrodes are designed for more demanding operating conditions, including higher current density, faster melting cycles, high thermal loads, and intensive furnace operation.
A 700mm Uhp Graphite Electrode is typically selected for large electric arc furnace applications where furnace capacity, transformer power, operating current, and production efficiency require a large-diameter electrode system.
The Main Use of UHP Graphite Electrodes
The primary application of UHP graphite electrodes is electric arc furnace steelmaking.
In an electric arc furnace, graphite electrodes are lowered through the furnace roof toward the scrap charge. Electrical energy passes through the electrodes and creates an arc between the electrode tips and the material inside the furnace. The resulting high temperature melts the scrap and supports the steelmaking process.
UHP graphite electrodes are valued because they can perform under high electrical and thermal stress while maintaining stable conductivity and mechanical integrity.
Their main functions include:
- Conducting electrical current into the furnace
- Generating the electric arc required for melting
- Supporting high-power furnace operation
- Helping improve melting efficiency
- Supporting stable furnace productivity
- Withstanding repeated thermal cycling during steelmaking
UHP Graphite Electrodes in Electric Arc Furnaces
Electric arc furnaces are widely used in modern steel production, particularly where scrap steel recycling is part of the production process. The furnace requires a reliable conductive material that can operate at extremely high temperatures.
UHP graphite electrodes are commonly used in high-power EAF operations because they are designed to provide:
- Low electrical resistivity
- High bulk density
- Strong thermal-shock resistance
- Good mechanical strength
- Stable performance under high current density
- Suitable oxidation resistance for demanding furnace conditions
These properties help steelmakers operate at higher power levels while managing electrode consumption and maintaining furnace productivity.
However, electrode performance is not determined by UHP grade alone. Furnace practices, electrode-joint quality, operating current, scrap mix, oxygen use, cooling conditions, and handling procedures all affect actual consumption and operating results.
What Is a 700mm Uhp Graphite Electrode Used For?

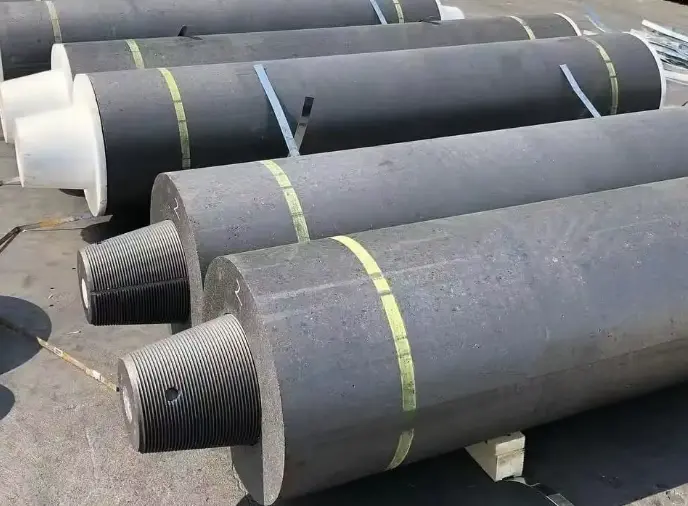

A 700mm Uhp Graphite Electrode is a large-diameter electrode commonly considered for high-capacity electric arc furnace systems. The “700mm” designation refers to the nominal electrode diameter.
Large-diameter UHP electrodes are generally associated with operations that require substantial current-carrying capability and stable high-power input. They may be used in large EAF steel plants where process conditions call for a robust electrode system.
When evaluating a 700mm Uhp Graphite Electrode, buyers should confirm more than the diameter. Important factors include:
| Selection Factor | Why It Matters |
|---|---|
| Nominal diameter | Must match furnace design and electrode-arm requirements |
| Electrode length | Influences handling, furnace operation, and change frequency |
| Nipple type | Must provide reliable electrical and mechanical connection |
| Electrical resistivity | Affects current transfer and operating efficiency |
| Bulk density | Supports structural strength and performance |
| Flexural strength | Important for handling and furnace operation |
| Thermal expansion | Affects performance during temperature changes |
| Furnace transformer capacity | Helps determine suitable electrode specification |
| Operating current and power | Must align with the electrode grade and diameter |
| Consumption target | Supports cost control and purchasing planning |
A large electrode should never be selected based only on size. The correct specification should be matched to the furnace’s technical requirements and verified with the supplier’s product data and quality documentation.
UHP Electrodes in Ladle Furnaces
UHP grade graphite electrodes can also be used in ladle furnaces, depending on the refining process and power requirements.
A ladle furnace is commonly used after melting to refine steel, control temperature, adjust composition, and support production quality. In these applications, the electrode system helps provide the controlled electrical heating needed during secondary metallurgy.
Ladle-furnace requirements can differ from primary EAF melting. Buyers should therefore confirm the operating conditions, electrode diameter, length, joint design, and consumption expectations for the specific furnace.
UHP Graphite Electrodes for Other Smelting Applications
Although UHP graphite electrodes are most closely associated with high-power electric arc furnace steelmaking, graphite electrodes can also be used in selected metallurgical and smelting processes.
Depending on the process design and operating requirements, applications may include:
- Ferroalloy production
- Silicon metal production
- Phosphorus-related furnace processes
- Specialty alloy manufacturing
- Other high-temperature electric-furnace operations
The appropriate electrode grade must always be selected according to the furnace type and electrical operating conditions. UHP is not automatically the best choice for every furnace. In some lower-power or less demanding applications, another graphite electrode grade may be more suitable and cost-effective.
UHP vs. HP vs. RP Graphite Electrodes
Graphite electrodes are commonly divided into Regular Power, High Power, and Ultra High Power grades.
RP Graphite Electrodes
Regular Power electrodes are generally used in lower-power electric-furnace operations. They may be suitable where current demand and thermal load are lower.
HP Graphite Electrodes
High Power electrodes are designed for more demanding conditions than RP electrodes. They can be used where improved electrical and thermal performance is required.
UHP Graphite Electrodes
Ultra High Power electrodes are made for high-intensity furnace operations. They are typically chosen for ultra-high-power EAF applications that demand higher current-carrying capacity, better thermal performance, and stable operation under severe conditions.
The correct grade depends on furnace design, transformer capacity, operating current, production target, and total electrode cost per ton of output.
How to Select the Right UHP Graphite Electrode
When selecting UHP graphite electrodes, purchasing teams should work from actual furnace data instead of choosing only by diameter or price.
A practical procurement checklist should include:
- Furnace type and furnace capacity
- Transformer capacity
- Secondary voltage and operating current
- Required electrode diameter and length
- Nipple specification and joint system
- Expected electrode consumption
- Storage and handling conditions
- Supplier manufacturing consistency
- Quality-control records and test reports
- Delivery schedule and packaging requirements
For a 700mm Uhp Graphite Electrode, it is especially important to evaluate the complete electrode-and-nipple system. Joint reliability has a direct effect on electrical continuity, mechanical stability, and safe furnace operation.
Storage and Handling Considerations
Graphite electrodes should be handled carefully before installation. Improper unloading, stacking, lifting, or assembly can cause edge damage, cracking, or thread damage.
Before use, operators should inspect electrodes and nipples for visible damage. Store products in a clean, dry area and protect threaded connections from contamination and impact. Installation and tightening should follow the supplier’s technical instructions and the steel plant’s approved operating procedures.
Because EAF operation involves high temperature, high electrical energy, heavy lifting, and industrial furnace hazards, electrode handling and installation should be performed only by trained personnel using appropriate safety procedures.
Conclusion
UHP grade graphite electrodes are used primarily in ultra-high-power electric arc furnaces for steelmaking. They conduct current, create the electric arc, and help support efficient melting under demanding thermal and electrical conditions.
A 700mm Uhp Graphite Electrode may be suitable for large EAF operations, but the final selection should be based on furnace capacity, transformer power, operating current, joint design, technical specifications, and documented quality performance.
For UHP graphite electrode specifications, large-diameter electrode sourcing, and application-focused support, please contact TDTS.
FAQ
What does UHP mean in graphite electrodes?
UHP means Ultra High Power. It describes graphite electrodes designed for high-power electric arc furnace operation.
What are UHP graphite electrodes mainly used for?
They are mainly used in electric arc furnaces for steelmaking, especially where high current density and high-power melting conditions are required.
What is a 700mm Uhp Graphite Electrode?
It is a large-diameter UHP graphite electrode with a nominal diameter of 700 mm, typically considered for high-capacity electric arc furnace applications.
Are UHP electrodes suitable for every electric furnace?
No. The appropriate grade depends on furnace type, transformer capacity, operating current, process requirements, and overall operating cost.
