In the fiery heart of the modern steel industry, where scrap metal is reborn into new steel, the electric arc furnace (EAF) is king. And this king has a powerful scepter: the UHP graphite electrode. As Allen, the owner of a factory that has been a leading graphite electrodes manufacturer for years, I’ve dedicated my career to perfecting this crucial component. I’ve worked closely with procurement officers like my friend Mark Thompson in the USA, helping them understand that not all electrodes are created equal. The difference between success and failure in an EAF operation often comes down to the quality of the graphite electrode you choose.
This article is your definitive guide to the pinnacle of electrode technology: the Ultra-High Power (UHP) graphite electrode. We will explore why its properties of low electrical resistance and high density are not just technical terms, but the very foundation of efficiency, productivity, and profitability in the demanding world of steelmaking. For anyone sourcing this critical material, understanding what makes a UHP graphite electrode superior is the first step toward optimizing your production and securing your supply chain.
What is a UHP Graphite Electrode and Why is it "Ultra-High Power"?

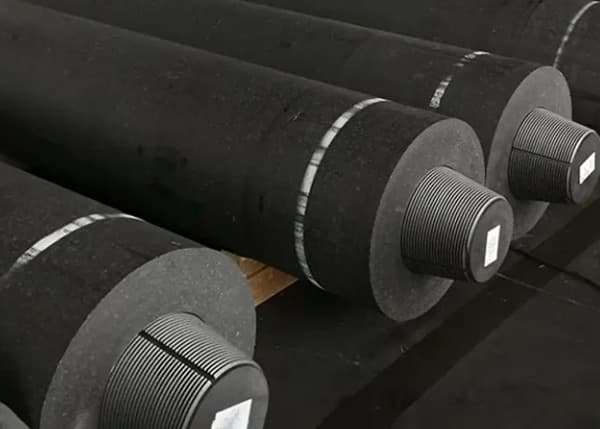

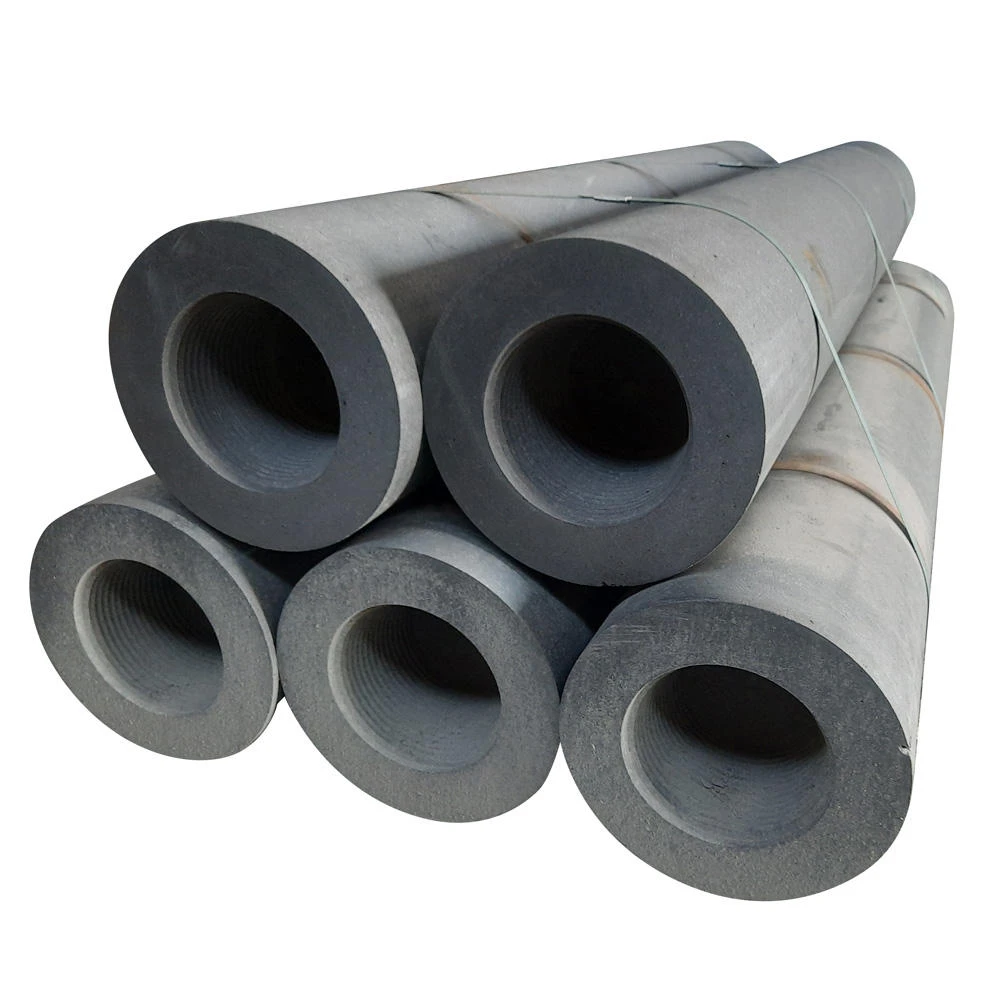

A UHP graphite electrode represents the highest grade of graphite electrodes available today. The "UHP" stands for Ultra-High Power, a designation that it earns by being specifically engineered to withstand the most extreme conditions inside the most powerful electric arc furnaces. In simple terms, these electrodes are massive, precisely machined cylinders of pure graphite that act as a conduit for immense amounts of electricity. Their job is to carry colossal currents—often hundreds of thousands of amperes—into the electric arc furnace.
The "Ultra-High Power" name comes from its ability to handle extremely high current densities. The UHP graphite electrode is mainly used in large-capacity power electric arc furnaces, particularly those used for large-scale steel production and in ladle furnaces for refining. These furnaces operate at maximum capacity to smelt tons of scrap steel in the shortest possible time. To do this, they need an electrode that can deliver the necessary energy without failing. A UHP graphite electrode is designed to do exactly that, making it an indispensable consumable for modern, high-efficiency EAF steelmaking.
How Does the Production Process Create a High-Quality UHP Graphite Electrode?
The superior performance of a UHP graphite electrode is not an accident; it’s the result of a meticulous and demanding production process that uses only the finest raw material. The key ingredient that sets UHP electrodes apart is premium needle coke. This is a special type of petroleum coke with a unique, needle-like crystal structure. This structure is essential for achieving the low electrical resistance and high mechanical strength required for UHP applications.
The manufacturing process is a multi-stage journey. The raw needle coke is crushed and mixed with a special binder, typically coal tar pitch. This mixture is then carefully formed (knead) and extruded into the shape of a large electrode. The next step is a long, slow baking (bake and roast) process in a special furnace, which solidifies the electrode. This is followed by impregnation with more pitch to increase its density and strength. Finally, the electrode undergoes graphitization, where it is heated to nearly 3000°C. This extreme temperature transforms the carbon into the highly ordered structure of graphite. This strict, lengthy process is what gives the UHP graphite electrode its exceptional physical and chemical properties.
Why is Low Electrical Resistance the Most Critical Property of a UHP Graphite Electrode?
In the world of electrical engineering, resistance is the enemy of efficiency. Imagine trying to push water through a very narrow, clogged pipe—you’d lose a lot of energy and pressure. The same is true for electricity flowing through a graphite electrode. Low electrical resistance (also measured as low resistivity) is the most crucial property of a UHP graphite electrode because it allows an immense electric current to pass through it with minimal energy loss.
This low resistance is vital for several reasons. First, it ensures that the maximum amount of energy is delivered to the tip of the electrode, creating a powerful and stable arc between the electrode and the metal charge. This is where the melting happens. If the electrode has high resistance, much of that energy is wasted as heat within the electrode itself, not in the arc. This wasted energy drives up operating costs. Second, an electrode that overheats due to its own resistance is prone to cracking and rapid consumption, leading to costly furnace downtime and increased maintenance. A UHP graphite electrode with a verified low electrical resistance is the key to an energy-efficient and stable furnace operation.
What Role Does High Density Play in a Graphite Electrode’s Performance?
If low resistance is about efficiency, then high density is about durability and longevity. The density of a graphite electrode is a direct measure of how much material is packed into a given volume. A high-quality UHP graphite electrode is characterized by its high density, which is achieved through the use of premium needle coke and multiple impregnation cycles during its production.
This high density provides two major benefits inside the brutal environment of an electric arc furnace. First, it significantly improves the electrode’s mechanical strength. The furnace is a violent place, with tons of shifting scrap steel and intense electromagnetic forces. A denser electrode is much more resistant to breaking under these physical stresses. Second, a denser material is more resistant to oxidation. At the incredibly high temperatures of the furnace, the surface of the electrode is constantly reacting with oxygen in the atmosphere and burning away. A denser electrode has less porosity, exposing less surface area to this attack and thus slowing down the rate of consumption. This means the electrode lasts longer, which helps reduce operating costs and improves the overall efficiency of the steelmaking process.
How Do UHP Graphite Electrodes Revolutionize the Modern Steel Industry?
The advent of the UHP graphite electrode has been a game-changer for the steel industry. These electrodes are the enabling technology behind the rise of the electric arc furnace as a primary method for steel production. The EAF process, which primarily uses scrap steel as its raw material, is a cornerstone of the modern circular economy and a more environmentally friendly alternative to traditional blast furnaces. Without UHP electrodes, the high-powered furnaces that make large-scale recycling of steel economically viable simply could not exist.
Graphite electrodes are widely used in this industry because they improve production efficiency dramatically. The ability of a UHP graphite electrode to handle ultra-high power allows furnaces to melt down charges of scrap steel much faster than ever before. This significantly reduces the "tap-to-tap" time—the total time it takes to produce one batch, or "heat," of steel. Shorter cycles mean more production from the same furnace, increasing output and profitability. The strength and reliability of UHP graphite electrodes also lead to a more stable and predictable furnace operation, with less downtime for maintenance or electrode replacement.
What are the Key Differences Between UHP, HP, and RP Graphite Electrodes?
For a procurement professional, understanding the different grades of graphite electrodes is essential to making the right purchasing decision. While they may look similar, their performance capabilities and costs are vastly different.
| Electrode Grade | Primary Raw Material | Max. Current Density | Typical Application |
|---|---|---|---|
| RP (Regular Power) | Standard Petroleum Coke | < 18 A/cm² | Small EAFs, Ladle Furnaces, Smelting |
| HP (High Power) | High-Grade Petroleum Coke | 18 – 25 A/cm² | High power electric arc furnaces for steelmaking |
| UHP (Ultra-High Power) | Premium Needle Coke | > 25 A/cm² | Ultra high power electric arc furnaces for high-volume steel production |
The key takeaway is that the grade must match the furnace. Using an RP or HP electrode in a furnace designed for ultra-high power would lead to rapid failure and could damage the furnace. Conversely, using a UHP graphite electrode in a low-power application is not cost-effective. The UHP graphite electrode is mainly used for ultra high power applications, and its premium price is justified by its performance under the most stringent conditions.
What Should You Look for in a UHP Graphite Electrode Specification Sheet?
When you receive a quote for a UHP graphite electrode, it will come with a technical data sheet. This document is your window into the product’s quality. It’s crucial to know what the numbers mean. For a high quality UHP electrode, you should look for:
- Low Electrical Resistivity (μΩ.m): This is the key performance indicator. For UHP grade, this value should be very low, typically below 5.5 μΩ.m. A lower number means better electrical conductivity.
- High Apparent Density (g/cm³): This indicates the electrode’s robustness. Look for a value of 1.68 g/cm³ or higher.
- High Flexural Strength (MPa): This measures the high mechanical strength of the electrode and its ability to resist breakage. A higher number is better.
- Low Coefficient of Thermal Expansion (CTE): A low CTE means the graphite electrode will not expand or contract much with drastic temperature changes, making it resistant to thermal shock and cracking.
- Ash Content (%): This should be extremely low (e.g., < 0.3%) to prevent impurities from contaminating the steel.
These parameters are not just suggestions; they are guarantees of performance. A reliable graphite electrodes manufacturer will always provide a detailed sheet and stand by the quality it represents.
How Can You Identify a High-Quality Graphite Electrodes Manufacturer?
In a global market, finding a truly high-quality graphite electrodes manufacturer can be challenging. Many companies are simply traders, not producers. Dealing directly with a factory is always the best way to ensure quality and get the best value.
"I’ve spoken to many buyers who have been burned by suppliers who couldn’t deliver on their promises. The difference always comes down to control. As a manufacturer with our own production lines, we have strict control over every step, from the raw material to the final machine work on the electrode nipple. That’s how we guarantee quality." – Allen, Factory Owner
A top-tier manufacturer will have several key attributes. They will be transparent about their production process and the materials they use, especially their source of needle coke. They will hold internationally recognized quality certifications, such as ISO 9001. They will have a proven track record of exporting to demanding markets like North America and Europe and will understand the logistical challenges involved. Most importantly, they will be able to provide comprehensive technical data and support to help you choose the right electrodes that meet your specific needs. This is the level of service and quality we strive for at Tuoda.
What are the Common Issues with Low-Quality UHP Electrodes in the Steel Industry?
Choosing a UHP graphite electrode based on price alone is a dangerous gamble in the steel industry. The potential consequences of using a substandard product can far outweigh any initial savings. Low-quality electrodes, often made with inferior raw materials or a rushed production process, can lead to a host of problems in the electric arc furnace.
One of the most common issues is electrode breakage. An electrode with low mechanical strength can easily snap during the operation, causing a major production stoppage. This requires a dangerous and time-consuming process to remove the broken pieces from the furnace. Another frequent problem is an abnormally high consumption rate. A low-density electrode will oxidize and erode much faster, meaning you have to buy and replace them more often, driving up your overall costs. Finally, a poor-quality graphite electrode can introduce impurities into the molten steel, compromising the quality of the final product and potentially requiring the entire batch to be downgraded or re-refined. For critical applications, only a true Ultra-high power graphite electrode from a trusted source is suitable.
Why is Partnering with the Right Graphite Electrode Manufacturer Crucial for Your Operation?
Your choice of graphite electrode supplier is a strategic decision that directly impacts your bottom line. A reliable partner is more than just a vendor; they are an integral part of your supply chain, helping you maintain operational stability and efficiency. A top-tier graphite electrodes manufacturer provides more than just a product; they provide peace of mind.
A strong partnership means you can trust that every graphite electrode you receive meets strict quality standards. It means you can rely on consistent delivery schedules, avoiding the production delays that can be caused by logistical problems. It means having access to technical experts who can help you optimize your furnace operation and troubleshoot any issues. For businesses engaged in high-stakes industrial processes like metallurgy and steelmaking, partnering with a proven manufacturing expert like us ensures that you have a steady supply of the high-performance, high-quality UHP electrodes needed to keep your furnaces running at peak performance. This is particularly important when considering specialized products like our Extra Large Graphite Electrode.
Key Takeaways
The UHP graphite electrode is a marvel of material science and a cornerstone of the modern steelmaking industry. Understanding its key attributes is essential for any professional involved in this sector.
Here are the most important things to remember:
- UHP is for Ultimate Performance: Ultra-high power graphite electrodes are specifically designed for the most demanding electric arc furnace operations, handling extreme electrical currents.
- Needle Coke is Key: The superior performance of a UHP graphite electrode comes from its primary raw material, premium needle coke, which ensures its unique properties.
- Low Resistance = High Efficiency: The most critical property is low electrical resistance, which maximizes energy delivery to the steel and minimizes wasted energy.
- High Density = High Durability: High density gives the electrode the mechanical strength to resist breakage and the resilience to slow down its consumption rate.
- Your Manufacturer is Your Partner: Choosing a reputable, experienced, and certified graphite electrodes manufacturer is the single most important step to ensuring you receive a high-quality product that delivers reliable and efficient performance.
