Unveiling the Layered Secret: The Molecular Structure of Graphite and How It Differs from Diamond

Hello there! I’m Allen. I run a large factory here in China with seven bustling production lines dedicated to creating high-quality graphite products. I’ve spent years exporting to business owners just like you in the USA, Europe, and Australia. Over the years, I’ve realized that while many people buy graphite, very few truly understand what makes it tick.

Why should you, a busy procurement officer or business owner like my friend Mark Thompson, care about the molecular structure of a black rock? Because understanding the science behind the material explains why it works. It explains why a graphite electrode can withstand the inferno of a steel furnace, or why a graphite lubricant keeps machines running smoothly. If you understand the layer structure, you can spot quality issues and make smarter buying decisions. Today, we are going to dig deep—not into the ground, but into the atomic world of carbon. We will explore the unique structure of graphite, how it compares to its flashy cousin, the diamond, and why these invisible details matter for your bottom line.

What Exactly is Graphite and Is It Just Coal?

First things first: What is this material? Graphite is a mineral that is naturally found in metamorphic rocks. It is gray to black in color, has a metallic luster, and feels greasy to the touch. But chemically speaking, it is surprisingly simple. Graphite is a stable form of carbon. That’s it. Just carbon.

You might be thinking, "Allen, isn’t coal also carbon?" Yes, but there is a big difference. Coal is largely amorphous, meaning its atoms are jumbled up without a clear order. Graphite, on the other hand, is crystalline. Its carbon atoms are arranged in a very specific, orderly pattern. It is a mineral consisting of carbon that has reached a state of stability that coal has not. This crystalline nature is what gives graphite its amazing superpowers, like being a great conductor and having high thermal resistance. Whether you are looking at natural graphite or the synthetic kind we make in my factory, the basic chemical identity is the same: pure carbon.

How is the Molecular Structure of Graphite Arranged?

Now, let’s get out our microscopes. To understand the properties of graphite, you have to look at how the atoms hold hands. In graphite, each carbon atom is bonded to three other carbon atoms. These atoms link up to form rings of six carbon atoms. Imagine a honeycomb or chicken wire. That is exactly what a single sheet of graphite looks like—a flat, planar sheet of hexagonal rings.

This brings us to the most critical concept: the layer structure. Graphite is not a solid, 3D block like a brick. Instead, graphite has a layer structure. It is made up of stack upon stack of these planar hexagonal sheets. Think of a deck of cards. Each card represents a layer of graphite. The atoms within a single card (or layer) are held together by extremely strong covalent bonds. This means the sheet itself is incredibly tough. However, the connection between the cards is a different story.

Why Does the Layer Structure Make Graphite So Unique?

The magic of graphite lies in the space between the layers. While the carbon atoms arranged inside the layer are locked tight with covalent bonds, the layers themselves are held together by weak forces known as Van der Waals forces.

Let’s go back to our deck of cards analogy. You can’t easily rip a playing card in half (representing the strong covalent bonds within the layer), but you can easily slide the top card off the deck. This is exactly what happens in graphite. The Van der Waals forces are so weak that the layers can slip and slide over one another with very little effort.

This weak bonding between layers is why graphite is very soft. It has a low hardness on the Mohs scale. It is also why graphite is used as a lubricant. When you rub graphite on a zipper or a machine part, you are essentially spreading out these microscopic layers, allowing surfaces to glide smoothly. This slippery nature is a direct result of its molecular structure.

What is the Real Difference Between Graphite and Diamond?

This is the question I get asked most often at dinner parties. "Allen, if both graphite and diamond are made of pure carbon, why is one the hardest material on Earth and the other soft enough to write with?"

It all comes down to the arrangement of the atoms. In a diamond, each carbon atom is bonded to four other carbon atoms in a rigid, three-dimensional tetrahedron shape. This creates a super-strong, interlocking lattice that extends in all directions. There are no weak layers. The entire structure is one giant, locked molecule.

In contrast, graphite only bonds to three neighbors, creating those 2D sheets. Because graphite has a layer structure with those weak Van der Waals gaps, it behaves completely differently.

• Diamond: Hard, transparent, electrical insulator.
• Graphite: Soft, opaque (black), excellent conductor.

So, while they are chemically identical twins, their "lifestyle" (atomic arrangement) makes them opposites. It is a perfect example of how structure dictates function in the world of chemistry.

Why is Graphite an Excellent Conductor of Heat and Electricity?

For my clients buying High-power graphite electrodes, this is the most important section. Why does graphite conduct electricity when diamond doesn’t?

Remember that carbon has four electrons available for bonding. In diamond, all four are used up to connect to neighbors. They are stuck in place. In graphite, only three electrons are used to form those strong covalent bonds in the hexagonal rings. What happens to the fourth electron?

This fourth electron becomes "delocalized." This means the electrons are free to move around within the layer. They aren’t tied to a single atom. Because these electrons can flow freely through the crystal structure, graphite can conduct electricity. This makes it an excellent conductor of heat and electricity. This property is why graphite is the material of choice for the electrode in batteries and steel furnaces. It can carry massive electrical currents without melting, thanks to its high thermal resistance.

Where Does Natural Graphite Come From and How is it Mined?

Natural graphite is a gift from the earth. Graphite occurs in metamorphic rocks like marble and schist. It is formed when carbon-rich materials (like ancient organic matter) are subjected to intense heat and pressure over millions of years.

Graphite is mined in many parts of the world. Depending on how it formed, we find different types:

1. Flake Graphite: Found as distinct, flat flakes. This is very desirable for many applications.
2. Vein Graphite: This is found in veins or fractures in the rock and is considered very pure.
3. Amorphous Graphite: This is formed from coal beds that were heated by magma. It has a microcrystalline structure and is often used for lower-tech applications.

Mining involves digging up the ore and then processing it to separate the graphite from the waste rock. However, for high-purity industrial needs, mining often isn’t enough. That’s where factories like mine come in.

What is the Process of Synthetic Graphite Production?

As a manufacturer, this is my home turf. While natural graphite is great, modern industry often needs synthetic graphite because we can control its purity and properties perfectly. The production of graphite in a factory is a fascinating process.

It starts with solid raw materials coke (specifically petroleum coke) and coal tar pitch. Here is the simplified recipe:

1. Preparation: The raw materials coke and graphite (recycled scraps) are crushed. Coke and graphite are ground into specific particle sizes.
2. Mixing: These particles are mixed in mixing units. We use mixing units with carbonaceous binders (pitch) to create a paste.
3. Forming: The paste is pressed or extruded into shapes, like blocks or rods.
4. Baking: The shapes are baked at high temperatures (around 1000°C) to carbonize the binder.
5. Graphitization: This is the magic step. The baked carbon is heated to extremely high temperatures (up to 3000°C). At this heat, the carbon atoms rearrange themselves from a jumbled state into the orderly crystalline layer structure of graphite.

This process of synthetic graphite production allows us to create materials like high strength graphite blocks that are purer and stronger than most naturally occurring graphite.

What Are the Key Physical Properties That Industrial Buyers Must Know?

When you are looking to buy graphite, you need to look at the physical properties. Here is a checklist of what makes graphite special:

• Thermal Conductivity: Graphite transfers heat very well. This is vital for molds and crucibles.
• Electrical Conductivity: As mentioned, the free electrons make it a great conductor.
• Lubricity: Thanks to the Van der Waals forces, the layers slide. It is a dry lubricant.
• Thermal Shock Resistance: Graphite doesn’t expand much when heated. It can go from freezing to red-hot without cracking.
• Chemical Inertness: It doesn’t react with most acids or alkalis. Graphite is stable in harsh environments.
• Refractoriness: It has an incredibly high melting point. In fact, it doesn’t melt at standard pressure; it sublimes (turns to gas) at around 3600°C.

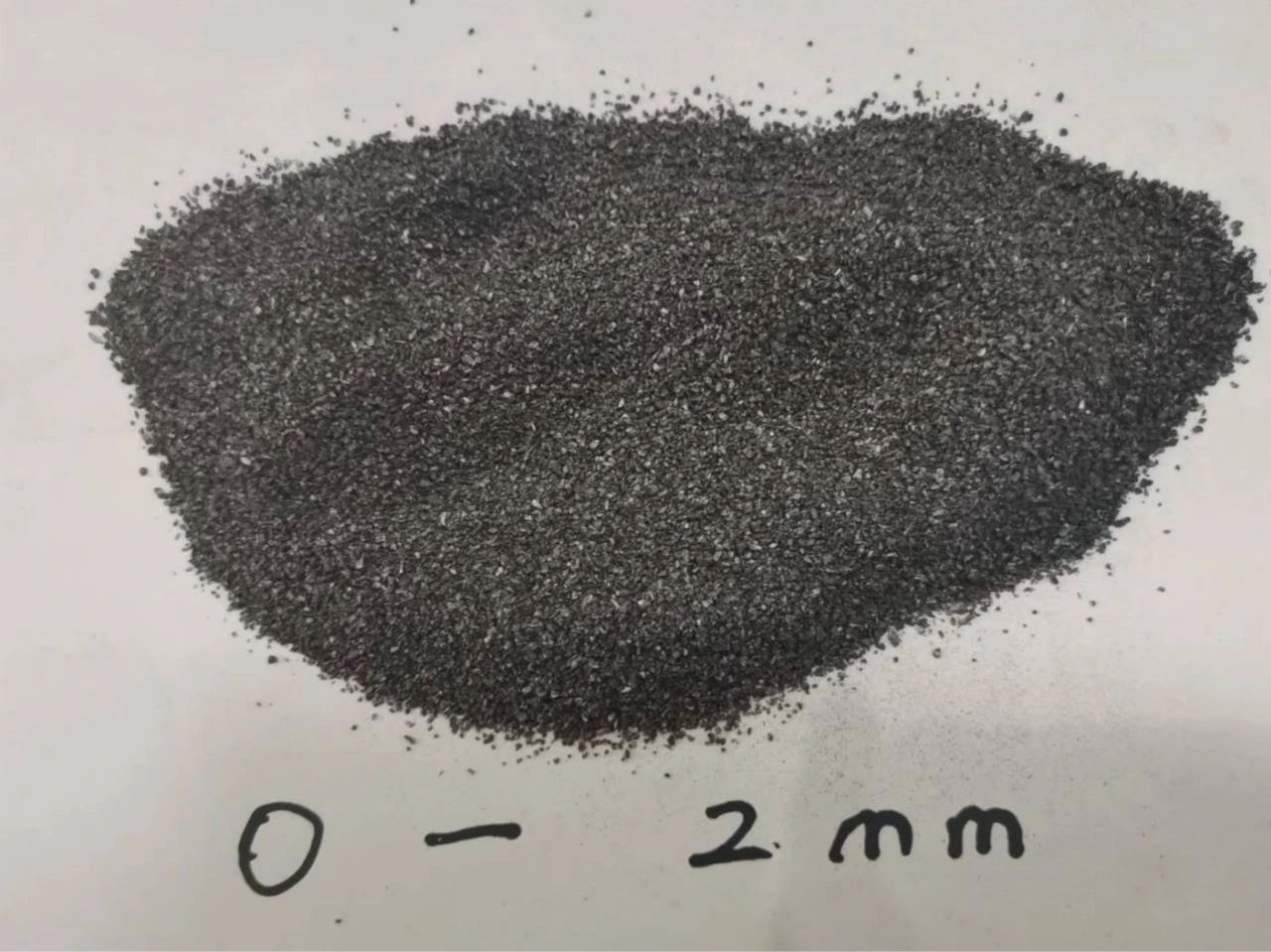

Whether you need High purity 99.9% graphite powder or huge blocks, these properties are what you are paying for.

How is Graphite Used in Everyday Life and Heavy Industry?

The applications of this gray to black mineral are endless.

• Pencils: The "lead" in your pencil isn’t lead at all. It is a mixture of clay and graphite. The softness allows it to leave a mark (a layer of graphite) on the paper.
• Foundry and Metallurgy: Graphite is used to make crucibles for melting metal and as molds for casting. It is also a key component in steelmaking electrodes.
• Lubrication: Graphite powder is used as a lubricant in locks and heavy machinery where oil might attract dust or burn up.
• Batteries: The anode in lithium-ion batteries (like in your phone or electric car) is made of graphite. The lithium ions store themselves between the graphite layers.
• Brushes: Electric motors use carbon brushes (made of graphite) to conduct current to the spinning part of the motor.

Is Graphene Related to the Structure of Graphite?

You may have heard of a "miracle material" called graphene. Well, graphene is simply a single layer of graphite.

Remember those planar hexagonal sheets we talked about? If you were to peel off just one single sheet—one atom thick—you would have graphene. Graphene has amazing properties; it is stronger than steel and conducts electricity better than copper.

Scientists discovered graphene by using sticky tape to peel layers off a piece of graphite until they had just one layer left. It shows that the future of technology is hidden inside the structure of graphite we use today.

Summary: What to Remember

Understanding the molecular structure of graphite gives you the power to understand its value. It is not just a rock; it is a sophisticated arrangement of atoms that serves as a cornerstone of modern industry.

• It’s All Carbon: Graphite is a crystalline form of pure carbon, just like diamond, but arranged in sheets.
• Layers are Key: Graphite has a layer structure. The layers are held by weak Van der Waals forces, making it soft and slippery.
• Strong Sheets: Inside the layers, atoms form rings of six carbon atoms with strong covalent bonds.
• It Conducts: Unlike diamond, graphite has free electrons, making it an excellent conductor of heat and electricity.
• Synthetic vs. Natural: Natural graphite is mined, while synthetic graphite is manufactured from coke for higher purity.
• Versatile: From pencils to electrodes and lubricants, its unique properties make it essential.

If you are in the market for high-quality customized high carbon calcined smokeless coal or precision graphite parts, knowing these basics ensures you get the best material for your needs. Feel free to reach out if you have more questions about this amazing element!
