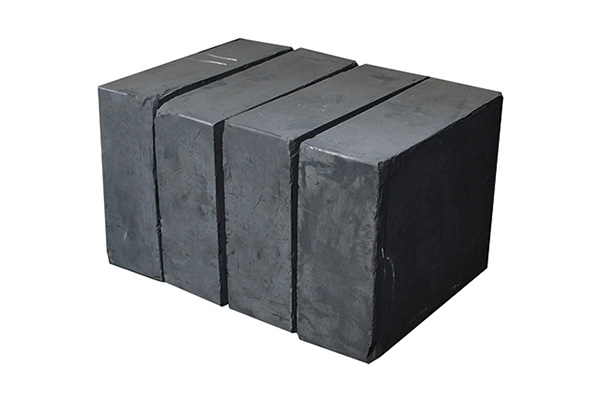

Unlocking the Power of Carbon: A Complete Guide to High-Temperature Graphite Blocks

Welcome to the world of industrial materials! It’s a place where strength, resilience, and performance are everything. At the heart of many high-temperature industries lies a remarkable material: the graphite block. If you’re a procurement officer, a steel mill operator, or a business owner like Mark Thompson in the USA, you know that sourcing the right components is crucial for success. This article is your guide. I’m Allen, and from my factory in China, I’ve spent years helping customers understand this incredible material. We’ll explore what a graphite block is, how it’s made, and why its unique properties make it indispensable. You’ll learn what to look for when buying and how to avoid common pitfalls, ensuring you get the quality and reliability your business depends on.

What Exactly Is a Carbon Graphite Block?

Let’s start with the basics. What is this material we rely on so heavily? At its core, a graphite block is a solid form of carbon. Think of it like a diamond’s hardworking cousin. Both are made of carbon atoms, but their atomic structure is different. This difference gives graphite its unique and highly valuable set of properties. The material is typically grayish-black, feels slightly greasy to the touch, and is surprisingly lightweight for its strength.

These solid blocks are not usually found in nature in this form. While natural graphite exists, the large, uniform blocks used in industry are almost always synthetic. They are engineered products, created by taking carbonaceous raw materials—like petroleum coke and coal tar pitch—and subjecting them to immense heat and pressure. This process, known as graphitization, aligns the carbon atoms into a layered structure. It’s this structure that gives the graphite block its signature characteristics, such as excellent thermal conductivity and the ability to act as a fantastic lubricant.

So, when we talk about a carbon graphite block, we are referring to a precisely manufactured material, designed to perform under extreme conditions. Its unique physical and chemical properties, like high-temperature resistance and chemical stability, make it a cornerstone material in countless industrial processes. From the roaring heat of a steel furnace to the precision of an EDM machine, the humble graphite block is a true unsung hero.

How Do We Manufacture High-Quality Synthetic Graphite Blocks?

Creating a high-performance graphite block is a multi-step, precision-controlled process. As a factory owner, this is where my team and I focus our expertise. It all begins with selecting the right raw material. The quality of the initial petroleum coke and binder pitch directly impacts the final properties of the graphite block, such as its density and strength.

The process unfolds in several key stages:

1. Mixing and Kneading: The raw materials are crushed into a fine graphite powder, then mixed with the binder at a specific high temperature to create a uniform, paste-like consistency.
2. Forming: This paste is then shaped into large blocks. The three primary methods are extrusion, vibration molding, and isostatic pressing. The method we choose depends on the desired shape and properties of the final graphite block. Isostatic pressing, for example, produces a high density block with uniform properties in all directions, making them ideal for complex applications.
3. Baking: The newly formed "green" carbon blocks are baked in a furnace for several weeks. This slow process carbonizes the binder, transforming the soft paste into a hard, solid carbon block and burning off volatile compounds.
4. Impregnation: To increase the density and strength, the baked carbon block is often impregnated with more pitch and then re-baked. This step fills any voids within the block, enhancing its mechanical properties.
5. Graphitization: This is the most critical stage. The carbon block is heated in a special electric furnace to an incredibly high temperature—often exceeding 3000°C (5432°F). This intense thermal treatment forces the amorphous carbon atoms to rearrange into the ordered, layered crystalline structure of graphite. This is what unlocks the material’s signature high electrical conductivity and thermal conductivity.

Throughout this journey, rigorous quality control is essential. We monitor every variable, from particle size to furnace temperature, to ensure each graphite block meets the exacting standards our customers require for their applications.

What Makes Graphite an Ideal Material for High-Temperature Applications?

Have you ever wondered what makes graphite so special in environments where other materials would simply melt or degrade? The ability to withstand extreme heat is one of the key reasons graphite blocks are used so widely. While most materials lose strength as they get hotter, graphite does the opposite. Its strength actually increases with temperature, peaking at around 2500°C (4532°F). This is a rare and incredibly useful trait.

This remarkable high-temperature resistance is due to the strong covalent bonds between the carbon atoms in its layers. It allows a graphite block to maintain its structural integrity in applications like crucibles for melting metals, linings for a blast furnace, or as heating elements. These graphite heating elements can operate efficiently in vacuum or inert atmospheres where traditional metallic elements would fail. The material doesn’t melt at atmospheric pressure; instead, it sublimes (turns from a solid directly to a gas) at a staggering 3652°C (6606°F).

Furthermore, a graphite block possesses excellent thermal shock resistance. This means it can handle rapid changes in temperature without cracking or breaking. Imagine plunging a red-hot object into cold water—many materials would shatter. Graphite, however, can withstand such drastic shifts due to its low coefficient of thermal expansion and high thermal conductivity. This combination of properties ensures reliability and longevity, making them suitable for the demanding cycles of industrial furnace operations and powder metallurgy.

What are the Main Differences in Grades of Graphite?

Not all graphite blocks are created equal. Just like you can buy different grades of steel or lumber, graphite comes in various grades tailored for specific tasks. For customers, understanding these grades is key to balancing performance and cost. The main distinction lies in the purity, grain size, and manufacturing process, which determine the block’s physical properties.

Here’s a simple breakdown of common classifications:

For many of my customers in the steel industry, the choice often comes down to the grade of graphite electrodes they need. These are categorized by their ability to carry electrical current:

• Regular Power (RP): Used in smaller furnaces for melting scrap or in ladle metallurgy.
• High Power (HP): For high-power electric arc furnaces, offering better performance.
• Ultra-High Power (UHP): Made from premium needle coke, these are designed for the most demanding electric arc furnaces, offering the lowest electrical resistance and highest efficiency. You can find more details on our Ultra-high power graphite electrode page.

Choosing the right grade is a critical decision. Using a lower-grade graphite block in a high-stress application can lead to premature failure, while over-specifying can be an unnecessary expense. This is why a transparent and knowledgeable supplier is so important.

What are the Primary Uses of Graphite Blocks in Metallurgy and Furnaces?

The metallurgical industry is, without a doubt, one of the biggest consumers of graphite products. Graphite blocks play a crucial role in nearly every stage of metal production and processing, from melting to casting. Their unique ability to handle molten metals and extreme heat makes them indispensable. One of the most significant uses is in electric arc furnaces (EAF), which are used to produce steel from scrap metal. In an EAF, massive graphite electrodes are used to conduct electricity, creating an arc that melts the steel.

Beyond electrodes, graphite blocks are widely used as refractory materials. They are machined into linings for blast furnaces and crucibles for holding and transporting molten metal. Why graphite? Because it is not "wetted" by most molten metals and has high chemical stability, meaning it won’t react with or contaminate the metal. This ensures the purity of the final product. The high thermal conductivity of a graphite block also allows for uniform heating and cooling, which is vital for quality control in casting processes.

Furthermore, graphite blocks are used to create molds for continuous casting and for shaping exotic alloys in the aerospace industry. The material’s self-lubricating properties allow the solidified metal to be removed easily from the mold, while its stability at high temperatures ensures the mold keeps its shape use after use. We even supply specialized high temperature resistant graphite crucible for melting that are custom-designed for specific metallurgy applications.

Why are Graphite Blocks Crucial for Electrical Discharge Machining (EDM)?

Beyond the fiery world of metallurgy, the graphite block finds a home in the high-precision field of Electrical Discharge Machining (EDM). EDM is a manufacturing process that uses electrical sparks to shape metal. Think of it as controlled erosion. Instead of a physical cutting tool, an electrode is used to discharge thousands of sparks per second, vaporizing the workpiece material to create intricate shapes that would be impossible with traditional machining.

So, why use graphite for the electrode? Several reasons. First, graphite is easy to machine. We can create highly complex and detailed electrode shapes from a larger graphite block with great accuracy. This allows for the production of equally complex molds and dies. Second, graphite has excellent wear resistance in the EDM process. A good EDM electrode should erode much slower than the workpiece, and graphite excels at this, leading to longer tool life and more consistent results. This makes the application of graphite very cost-effective.

Finally, the high thermal conductivity of graphite helps to dissipate the intense heat generated during the sparking process, preventing the electrode from overheating and deforming. The electrical conductivity ensures efficient energy transfer for a clean and fast cutting rate. The combination of easy machinability, low wear, and excellent thermal properties makes graphite the go-to material for a vast range of EDM applications, especially in tool and mold making. It’s a perfect example of how the unique properties of a graphite block can be harnessed for delicate and precise work.

Are Graphite Blocks Used in the Aerospace and Nuclear Industries?

Yes, absolutely. The same properties that make graphite blocks valuable in traditional industries make them critical for some of the most advanced technologies on the planet. In the aerospace sector, high-performance materials are non-negotiable. Graphite composites and pure graphite blocks are used to create components that are both lightweight and incredibly heat-resistant.

Specific aerospace applications include:

• Rocket Nozzles: The throat of a rocket nozzle endures incredibly extreme temperatures and corrosive gases. Graphite’s ability to withstand this environment is crucial.
• Heat Shields: Used for re-entry vehicles, graphite can absorb and radiate away the intense thermal energy generated by atmospheric friction.
• Brake Discs: High-performance aircraft, like commercial jets and Formula 1 cars, use carbon-carbon composite brakes (made from graphite fibers in a graphite matrix) because they are lightweight and maintain their friction properties at very high temperatures.

The role of graphite blocks in nuclear reactors is even more specialized. Here, a graphite block serves as a neutron moderator. In a nuclear reactor, the fission of uranium atoms releases fast-moving neutrons. To sustain the chain reaction, these neutrons need to be slowed down. Graphite is excellent for this job because its carbon nuclei can absorb some of the neutron‘s kinetic energy without capturing the neutron itself. This requires extremely pure graphite, as impurities could absorb neutrons and halt the reaction. The stability at high temperatures and structural integrity of a graphite block make it a reliable choice for the core of certain reactor designs.

How Does the Thermal and Electrical Conductivity of a Graphite Block Impact Its Performance?

The conductivity of a graphite block is not just a secondary feature; it is central to its function in many applications. Let’s look at thermal and electrical conductivity separately, as they each play a distinct, vital role. The excellent thermal conductivity of graphite is unusual for a non-metal. It conducts heat better than many metals, including steel and brass.

This high thermal conductivity is critical for several reasons:

• Heat Dissipation: In applications like continuous casting molds or EDM electrodes, graphite quickly draws heat away from the working area. This prevents overheating, reduces thermal stress, and extends the life of the component.
• Uniform Heating: As graphite heating elements, the material’s ability to conduct heat evenly ensures that the entire furnace or chamber reaches a consistent temperature. This is vital for processes like annealing metal or growing crystals for semiconductors.
• Thermal Shock Resistance: As mentioned earlier, good conductivity helps the material accommodate rapid temperature changes without building up internal stresses that could cause it to crack.

On the other hand, the high electrical conductivity is what makes graphite a key player in electrochemical processes. A graphite block is a fantastic conductive material, which is why it’s the primary choice for graphite electrodes in electric arc furnaces and for the anode in aluminum smelting. It allows massive amounts of electrical current to flow with minimal resistance, delivering the energy exactly where it’s needed. This electrical and thermal conductivity is also essential for batteries, particularly lithium-ion batteries, where graphite is the most common anode material, enabling efficient charging and discharging cycles. Our conductive graphite rod for electrodes are a prime example of harnessing this property.

What Should You Look for When Sourcing Graphite Blocks from a Supplier?

This is a question I discuss frequently with customers like Mark. As a procurement officer, your goal is to find a supplier who provides a quality product at a competitive price, with reliable service. Unfortunately, as he knows, this can be challenging. Here are some of the key things I advise buyers to focus on, based on my years of experience.

First, demand transparency regarding quality inspection and certifications. Don’t be afraid to ask for detailed material specification sheets that list properties like bulk density, electrical resistivity, and flexural strength. Ask for proof of ISO 9001 certification. A reputable factory will have this readily available and will be happy to walk you through their quality control processes. At our facility, we conduct tests at every stage, from the initial raw material to the final graphite block, and we provide full documentation to our clients. This builds trust and avoids the pain point of certificate fraud.

Second, evaluate the supplier’s communication and technical support. One of the biggest frustrations for buyers is dealing with sales reps who lack technical knowledge or are slow to respond. You need a partner, not just a vendor. Find a supplier whose team can discuss your specific application and recommend the right grade of graphite block for your needs. Efficient communication is key to solving problems quickly and preventing shipment delays that can throw your production schedules into chaos. We pride ourselves on having a responsive, knowledgeable team that understands the challenges of metallurgy and manufacturing. Clear communication about logistics and flexible payment methods are also signs of a customer-focused supplier.

The Future of Carbon: What’s Next for Graphite Block Technology?

The world of carbon is anything but static. While the graphite block has been a workhorse for decades, innovation continues to push its boundaries. The future is bright, driven by the demands of new technologies. One of the most exciting areas is in energy storage. The rise of electric vehicles and grid-scale energy storage has created immense demand for high-performance lithium-ion batteries. Researchers are constantly working to improve the graphite anode to increase energy density, reduce charging times, and improve battery life. This involves developing new synthetic graphite blocks with optimized porosity and particle structures.

Another area of growth is in advanced composites and fuel cells. By embedding high-strength carbon fibers within a graphite block matrix, we can create materials that are even stronger and more durable, opening up new possibilities in aerospace and high-performance engineering. In fuel cells, porous graphite blocks are used as bipolar plates to manage the flow of gases and conduct electricity. As the world seeks cleaner energy solutions, the demand for these advanced graphite solutions will only grow.

As a manufacturer, we are deeply invested in this future. We are continuously refining our processes to produce higher-purity, more consistent forms of graphite. We work with clients to develop custom graphite products for emerging applications. The fundamental properties of the carbon atom are timeless, but the ways we harness them in a graphite block are always evolving. It’s an exciting time to be in this industry, and the simple carbon graphite block will remain at the forefront of technological progress for years to come. For a look at our core offerings, feel free to browse our high strength graphite block products.

Key Takeaways

• Versatile Material: A graphite block is a synthetic form of carbon, engineered for exceptional performance in high-temperature and demanding environments.
• Unique Properties: Its key advantages include increasing strength with heat, excellent thermal shock resistance, high thermal and electrical conductivity, and chemical stability.
• Critical Manufacturing: The manufacture of a graphite block is a complex process involving careful selection of raw materials, forming, baking, and high-temperature graphitization to achieve desired properties.
• Wide Range of Uses: Graphite blocks are used across many industries, including as electrodes and refractories in metallurgy, precision tools in EDM, and as moderators in nuclear reactors.
• Grades Matter: Graphite comes in various grades (Isotropic, Extruded, UHP, HP) tailored to specific applications. Choosing the right one is crucial for performance and cost-effectiveness.
• Smart Sourcing: When buying, prioritize suppliers who offer transparent quality certifications, strong technical support, and clear communication to avoid common purchasing pitfalls.
• Future is Bright: Innovation in graphite technology is driving advancements in batteries, fuel cells, and aerospace, ensuring its relevance for years to come.
