An In-Depth Guide to the Atmospheric Carburizing Process

Hello, my name is Allen, and for over two decades, I’ve been at the helm of a factory in China that specializes in high-quality graphite products. We produce everything from graphite electrodes for steel mills to precision-machined graphite components. Over the years, I’ve had countless conversations with procurement officers and business owners like Mark Thompson from the USA. They are sharp, decisive, and always looking for a balance between top-tier quality and competitive pricing. Mark knows the business of buying and selling, but he often relies on us for the deeper technical details. This article is for people like Mark—and for you. It’s a straightforward, no-nonsense guide to one of the most vital heat treatment processes in modern industry: carburizing. We will demystify this process, explain why it’s so important, and show you what to look for in a quality-driven manufacturing partner. You’ll walk away understanding how a simple element, carbon, can transform a standard piece of steel into a high-performance, wear-resistant component.

What Exactly is the Carburizing Process?

At its core, carburizing is a type of heat treatment that introduces carbon into a solid metal, typically low-carbon steel. Think of it like a sponge soaking up water. We take a piece of steel with a low carbon content and place it in a high-temperature environment that is rich in carbon. This allows the surface of the metal to absorb carbon atoms. The goal isn’t to change the entire piece of steel, but to create a "case" or a hard, wear-resistant outer layer while keeping the inner "core" tough and ductile.

This carburizing process is technically known as a thermochemical diffusion process. "Thermochemical" means it involves both heat (thermo) and chemical reactions. "Diffusion" is the key mechanism where carbon atoms move from an area of high carbon concentration (the surrounding atmosphere) into an area of low concentration (the steel surface). We perform this heat treatment inside a specialized furnace at temperatures typically between 850°C and 950°C. After the surface has absorbed enough carbon, the component is rapidly cooled, or quenched, to lock in the new structure and harden the surface.

In my factory, while we focus on graphite, the principles of high-temperature material science are universal. Whether we’re baking high-strength graphite blocks or a customer is carburizing a gear, controlling the temperature and atmosphere is everything. The carburizing is a thermochemical process that fundamentally alters the mechanical properties of the material, making it incredibly useful for creating durable parts.

Why is Carburizing a Critical Heat Treatment for Metal?

So, why go through all this trouble? The primary reason for carburizing is to achieve a dual set of properties that are often mutually exclusive in a single material. You get a surface with incredible hardness and wear resistance and a core that retains its toughness and ductility. This combination is the holy grail for many mechanical components that face both surface friction and impact loads.

Imagine a gear in a car’s transmission. Its teeth are constantly meshing, grinding, and sliding against other gears. Without a hard surface, they would wear down in no time. This is where carburizing shines. It creates a surface that can withstand this constant abrasion. At the same time, the gear needs to handle the torque and shock of the engine without shattering. The softer, tougher core provides this resilience, preventing catastrophic failure. This is why carburizing is essential in the automotive industry for making gears, shafts, and bearings.

The benefits are clear and directly impact the lifespan and reliability of machinery.

• Improved Wear Resistance: The high surface hardness achieved through carburizing dramatically reduces wear from friction and contact stress.
• Enhanced Fatigue Resistance: The hard case and tough core combination improves the component’s ability to withstand cyclic loading without developing cracks.
• Cost-Effective Performance: Carburizing allows manufacturers to use inexpensive low-carbon steel and give it the surface properties of a much more expensive, high-carbon alloy. This is a huge advantage for cost-sensitive customers.

How Does Carburizing Harden Steel? The Science Explained

To understand how carburizing works to harden steel, we need to look at the microscopic level. The process can be broken down into three main stages: heating, soaking (diffusion), and quenching.

First, we place the low-carbon steel component (typically with less than 0.25% carbon) into a carburizing furnace. The furnace is heated to the carburizing temperature, usually above 900°C. At this high temperature, the crystal structure of the steel changes to a phase called austenite, which has a unique ability to dissolve a significant amount of carbon. This sets the stage for the next step.

Second is the "soaking" or diffusion stage. The component is held at the carburizing temperature within a carbon-rich environment. This environment is created using carburizing agents—solids, liquids, or gases that release carbon atoms. These carbon atoms then diffuse into the austenite structure of the steel surface. The depth of this carbon penetration, known as the case depth, is controlled by two factors: the carburizing temperature and the carburizing time. The longer the component soaks and the higher the temperature, the deeper the carbon will go. This creates a gradient of carbon content, highest at the surface and tapering down to the original low carbon content of the core.

Finally, and most critically, comes the quench. After the desired case depth and surface carbon content are achieved, the component is rapidly cooled by plunging it into a liquid like oil, water, or a polymer solution. This sudden drop in temperature forces the carbon-enriched austenite at the surface to transform into martensite, an extremely hard and brittle crystal structure. The core, with its lower carbon content, does not form as much martensite and remains much softer and tougher. The final step is to temper the component by reheating it to a lower temperature to relieve some of the brittleness from the martensite, resulting in the perfect balance of a hard case and a tough core.

What Are the Main Types of Carburizing Used in Various Industries?

While the principle of diffusion of carbon is the same, there are several methods to achieve it. The choice of method depends on factors like the required case depth, the number of parts to be treated, cost, and environmental considerations. Over my years in manufacturing, I’ve seen them all used for different applications. These are the main types of carburizing:

1. Gas Carburizing: The most common and versatile method used in various industries. The workpiece is heated in a furnace with a controlled carburizing atmosphere containing carbon-monoxide-releasing gases like natural gas, propane, or methane.
2. Liquid Carburizing: This method involves immersing the steel component in a bath of molten salt. The salt bath contains cyanides, which act as powerful carburizing agents. It’s fast and efficient but involves hazardous chemicals, making it less popular today due to safety and environmental concerns.
3. Solid (Pack) Carburizing: The oldest form of carburizing. Components are packed in a steel box, surrounded by a solid carbonaceous material like charcoal or coke, often mixed with an "energizer" like barium carbonate. The box is sealed and heated in a furnace. This method is simple but slow and offers less precise control over the case depth.
4. Vacuum Carburizing (or Low-Pressure Carburizing): A modern, clean, and highly controllable method. The process takes place in a vacuum furnace. The steel is heated in a vacuum, and then a small, precise amount of a hydrocarbon gas (like acetylene or propane) is introduced. The low pressure allows for very efficient carbon transfer and excellent uniformity.

A Deep Dive into Gas Carburizing: The Most Common Method

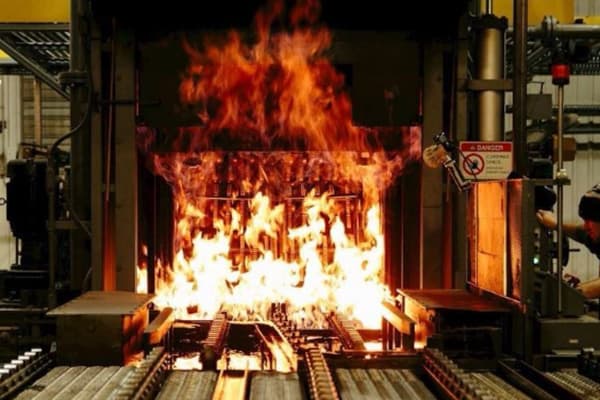

Gas carburizing is the workhorse of the heat treatment industry for a reason. It’s the most widely used method for mass production because it offers a great balance of control, efficiency, and cost-effectiveness. In this process, the workpieces are loaded into a sealed carburizing furnace. The furnace is first purged of oxygen and then filled with a specific atmosphere gas.

This carburizing atmosphere is carefully managed. It usually consists of a "carrier gas," typically an endothermic gas (produced by reacting air and a hydrocarbon gas), which is then enriched with a carbon-bearing gas like natural gas or propane. The chemical reactions at high temperature break down these gases, releasing active carbon atoms that are then absorbed by the steel. The carbon concentration in the atmosphere (known as the carbon potential) is continuously monitored and adjusted to ensure the desired surface carbon content is achieved without forming excess carbides, which can make the part brittle.

After the soaking cycle, the parts are either directly quenched from the carburizing temperature or slow-cooled, reheated, and then quenched. Direct quenching saves energy but can lead to more distortion. The choice depends on the material’s specification and the geometric complexity of the part. Because of its precision, gas carburizing is the go-to method for producing high-quality gears, bearings, and other critical power transmission components.

Exploring Liquid and Solid Carburizing: Are They Still Relevant?

While gas carburizing dominates the field, liquid carburizing and solid carburizing still have their place, although their use has declined. Solid carburizing, or pack carburizing, is the original method. It’s simple: you pack your steel parts in a box with charcoal and heat it. The main advantage is that it doesn’t require a complex furnace or atmosphere controls. However, it’s a slow and labor-intensive process, and controlling the final case depth and uniformity is very difficult. It’s mostly used for one-off jobs or for very large components where building a specialized furnace isn’t practical.

Liquid carburizing uses a molten salt bath, usually containing sodium cyanide, as the source of carbon. Its biggest advantage is speed. The direct contact with the hot liquid ensures rapid, uniform heating and a very fast rate of carbon diffusion. Processing time can be significantly shorter than with gas carburizing. The major drawback, and the reason for its decline, is the extreme toxicity of the cyanide salts. Handling and disposal pose significant safety and environmental risks, and many companies have moved away from it in favor of safer alternatives like vacuum carburizing. In our industry, we understand the importance of material handling, especially when dealing with high temperatures. Processes involving molten materials require specialized equipment, such as the high-temperature resistant graphite crucibles for melting that we manufacture, which are designed for safety and efficiency.

What is Vacuum Carburizing and How Does it Work?

Vacuum carburizing, also known as low-pressure carburizing, is a modern evolution of the carburizing process. It represents the pinnacle of precision and cleanliness. The process begins by placing the workpieces in a carburizing furnace and pumping out the air to create a vacuum. The parts are then heated to the carburizing temperature in this oxygen-free environment. This prevents any surface oxidation, resulting in a clean, bright finish.

Once at temperature, a measured amount of a hydrocarbon gas, such as acetylene, is pulsed into the chamber at very low pressure. Without any competing gases, the steel surface has a very high affinity for the carbon, leading to rapid absorption. The process consists of alternating "boost" steps (introducing the gas for carbon diffusion) and "diffuse" steps (stopping the gas flow to allow the absorbed carbon to move deeper into the material). This cycle provides exceptional control over the case depth and surface carbon content.

After the carburizing cycle, the parts are typically quenched using high-pressure gas (nitrogen or argon) within the vacuum furnace itself. This minimizes thermal shock and distortion, which is a huge benefit for precision parts. While the initial investment in a vacuum furnace is high, vacuum carburizing offers superior results, better repeatability, and is environmentally friendly, making it the preferred choice for high-performance applications in aerospace and high-end automotive manufacturing.

Carburizing vs. Nitriding: What’s the Key Difference?

Customers often ask me about the difference between carburizing and another common surface hardening process, nitriding. Both are thermochemical heat treatment processes designed to harden the surface of a metal, but they work in fundamentally different ways and are used for different purposes.

The primary difference is the element used for diffusion.

• Carburizing uses carbon. It requires a high temperature (over 900°C) to get the steel into its austenite phase for carbon diffusion, and it must be followed by quenching and tempering to achieve hardness. The resulting case is relatively deep (0.5 mm to 2 mm or more).
• Nitriding uses nitrogen. It is performed at a much lower temperature (around 500-550°C), so the steel does not change its core crystal structure. Because of the lower temperature, there is very little distortion, and no quenching is required. The hardness comes from the formation of hard nitride compounds on the surface.

Key Comparison:

In short, choose carburizing when you need a deep, tough case that can handle high contact loads, like on a gear. Choose nitriding when you need extreme surface hardness, excellent wear resistance, and minimal distortion is critical, such as for crankshafts or precision tooling.

What Key Factors Influence the Carburization Process?

Achieving the perfect carburized case is a science. As a factory owner, I live by process control. For carburization, a few variables are absolutely critical. Getting any of them wrong can lead to parts that are too brittle, too soft, or have the wrong case depth, ultimately leading to field failures. This is a major concern for my customers, who count on consistency.

The key factors are:

1. Carburizing Temperature: This is the most powerful lever. Higher temperatures increase the rate of carbon diffusion, meaning a shorter processing time is needed to reach a specific case depth. However, excessively high temperatures can cause grain growth in the steel, reducing its toughness, and can also lead to unwanted carbide formation.
2. Carburizing Time: Directly related to temperature, this determines how deep the carbon penetrates. The relationship isn’t linear; diffusion slows down as the surface becomes more saturated with carbon. Precise control of carburizing time is essential for meeting the part’s specification.
3. Carburizing Agents and Atmosphere: The type and concentration of the carburizing agents in the furnace atmosphere determine the "carbon potential"—the driving force for carbon diffusion. In gas carburizing, the mix of carrier gas and enriching gas must be meticulously controlled to achieve the target surface carbon content without creating soot or a brittle, over-carburized layer. The purity of the materials matters, too. For some applications, the carbon source needs to be incredibly pure, much like the high-purity 99.9% graphite powder we supply for specialized uses.
4. Steel Composition: The type of low-carbon steel being treated matters. Alloying elements like chromium, molybdenum, and manganese affect how the steel absorbs carbon and how it responds to the subsequent quench and temper cycles.

How Do We Ensure Quality in a Carburized Component?

For a procurement manager like Mark, this is the most important question. How do you know you got what you paid for? Quality assurance for a carburized component is a multi-step process that starts before the heat treatment and ends with rigorous testing.

First, raw material inspection is key. We must verify that the low-carbon steel meets the required specification. Next, process control is paramount. The carburizing furnace must have calibrated temperature and atmosphere sensors to ensure the parameters we discussed—temperature, time, and carbon potential—are held constant for every batch. This is where a reliable, modern furnace makes all the difference.

After the parts are carburized, quenched, and tempered, we perform destructive and non-destructive testing on sample pieces from the same batch.

• Hardness Testing: We use a machine to make a tiny indentation on the surface and measure its size to determine the surface hardness. We also test the core hardness.
• Case Depth Measurement: A sample part is cut, polished, and etched with a mild acid. This reveals the hardened case, which can be measured under a microscope. This is the ultimate proof of a successful carburizing run.
• Microstructural Analysis: We examine the polished sample under a high-powered microscope to check the grain structure, look for any detrimental carbides, and measure the amount of retained austenite (a soft phase that can be left over after an improper quench).

By providing a certificate with these test results, a supplier can demonstrate that they have performed the carburizing process correctly. This transparency builds trust and assures the customer that the components will perform reliably in the field, preventing the delays and failures that are so costly to their business. Our expertise in creating materials for extreme environments, like the ultra-high power graphite electrodes used in electric arc furnaces, has taught us that rigorous quality control is non-negotiable.

Key Takeaways

The carburizing process is a cornerstone of modern metallurgy, and understanding its fundamentals is crucial for anyone involved in the manufacturing or procurement of high-performance steel components.

Here are the most important things to remember:

• Dual-Purpose Power: Carburizing is a heat treatment that creates a hard, wear-resistant surface (case) on a component while maintaining a tough, ductile interior (core).
• The Mechanism: It works by diffusing carbon into low-carbon steel at a high temperature (typically above 900°C) inside a furnace, followed by a rapid quench to harden the surface.
• Main Types: Gas carburizing is the most common and controllable method. Vacuum carburizing offers the highest precision and cleanest results, while solid and liquid methods are less common today.
• Key Controls: The success of the carburizing process depends on precise control of three factors: temperature, time, and the carburizing atmosphere.
• Quality is Measurable: Don’t just take a supplier’s word for it. Proper quality assurance involves testing for surface hardness, core hardness, case depth, and microstructure. Always ask for a certificate with these results.
