A Comprehensive Guide to Graphite Electrodes for Your Electric Arc Furnace

As someone who has spent years in the graphite industry, my name is Allen, and from my perspective at our factory in China, I’ve seen firsthand how crucial the right components are for success in modern metallurgy. The graphite electrode is the heart of the electric arc furnace (EAF), the workhorse of modern steelmaking. For procurement officers like Mark Thompson in the USA, sourcing these critical parts can be a complex puzzle of quality, price, and logistics. This article is for you, Mark, and for every professional in the steel and foundry industry. We will demystify the world of graphite electrodes, exploring the different types of graphite electrodes and grades, what makes a high-quality product, and how to forge a reliable partnership with a supplier. This guide will provide the clarity you need to make confident and profitable purchasing decisions.

What is a Graphite Electrode and Why is it Essential for an Arc Furnace?

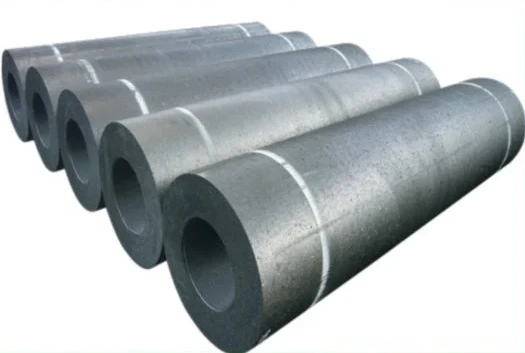

At its core, a graphite electrode is a large, cylindrical column made from high-purity graphite. Its primary job is to act as a massive conductor. Think of it as the element in a giant, industrial-scale kettle. In an electric arc furnace, these electrodes carry immense amounts of electrical energy—we’re talking tens of thousands of amperes—from the power source to the raw material inside the furnace. This electricity jumps a gap, creating a powerful arc that generates incredible heat, reaching high temperatures of over 3,000°C (5,400°F). This intense heat is what’s needed to smelt scrap metal, iron, and other materials into liquid steel.

The role of the graphite electrode is absolutely vital. Without it, the arc furnace simply cannot function. The reason graphite is the material of choice comes down to its unique set of properties. It possesses excellent electrical conductivity, allowing it to handle the massive currents required. At the same time, it has an incredibly high melting point and can withstand the extreme temperatures inside the furnace without degrading quickly. These electrodes are essential for the efficient and cost-effective production of steel, especially in mini-mills that rely on recycling scrap metal. They are consumables, meaning they are gradually used up during the melting process, making a reliable supply chain critical for any steel mill’s continuous operation.

A common question I get is about the difference between carbon and graphite. All graphite is a form of carbon, but not all carbon is graphite. The key difference lies in the manufacturing process. A standard carbon electrode is baked at a lower temperature. To create a graphite electrode, we take that baked carbon and put it through an additional, energy-intensive process called graphitization. This process, conducted at temperatures approaching 3000°C, rearranges the carbon atoms into the highly ordered, layered crystal structure that gives graphite its superior electrical conductivity and thermal stability. This makes the graphite electrode far more efficient and durable for the demanding environment of an arc furnace.

How Are High-Quality Graphite Electrodes Manufactured?

The journey from raw material to a finished graphite electrode is a multi-stage, precision-controlled process. It’s this process that separates a reliable, high-performance electrode from a subpar one that can cause costly downtime. As a factory with seven production lines, we have refined this process to ensure consistency and quality. It all begins with carefully selected raw materials. The primary ingredient is high-quality calcined petroleum coke, particularly needle coke for the higher grades. This is mixed with a coal tar pitch binder.

The manufacturing stages are as follows:

1. Forming: The blended paste is extruded or molded under high pressure into "green" electrodes of the desired diameter and length.
2. Baking: These green electrodes are carefully loaded into large baking furnaces and slowly heated over several weeks to around 800°C. This process removes volatile materials from the pitch binder and carbonizes it, creating a solid, hard carbon block.
3. Impregnation: To increase the density and mechanical strength of the graphite electrode, the baked carbon is impregnated with more pitch under pressure and vacuum. This fills the pores created during baking.
4. Re-baking: The impregnated electrodes are baked a second time to carbonize the new pitch. This step is crucial for creating a dense, strong graphite electrode.
5. Graphitizing: This is the most critical and energy-intensive step. The electrodes are heated in an electric furnace to nearly 3000°C. This intense heat rearranges the amorphous carbon atoms into the crystalline structure of graphite, giving the final product its signature low electrical resistance and high thermal conductivity.
6. Machining: Finally, the graphitized columns are precision-machined to create perfectly straight bodies and threaded sockets on each end. This ensures they connect securely within the arc furnace column, preventing electrical and mechanical issues.

Every step is monitored with strict quality control. The final graphite electrode must have a uniform density, high flexural strength, and the exact electrical properties required for its designated grade. This meticulous process ensures the electrodes are designed to handle the extreme conditions of modern steelmaking.

What are the Main Grade Graphite Electrodes: RP, HP, and UHP Explained

Not all electric arc furnaces are the same, so not all graphite electrodes are the same. They come in different grades based on their performance capabilities, which are directly tied to the quality of the raw material and the manufacturing process. For a procurement officer like Mark, understanding these grades is key to avoiding overspending or, worse, underperforming. The three main types of graphite electrodes are Regular Power (RP), High Power (HP), and Ultra-High Power (UHP).

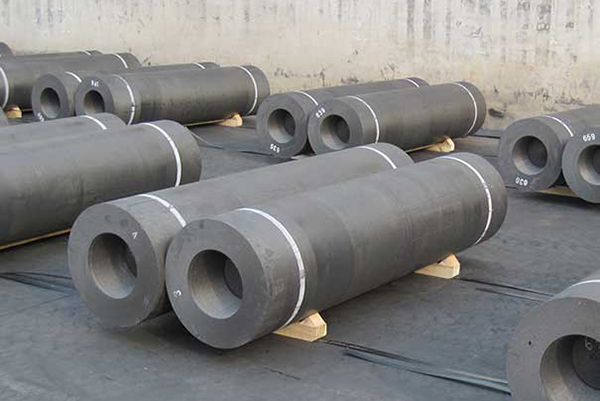

Regular Power (RP) graphite electrodes are the entry-level grade. RP graphite is suitable for less demanding applications with lower power levels and current densities. RP electrodes are often used in ladle furnaces or for the production of calcium carbide.

High Power (HP) graphite electrodes are a step up. HP electrodes are made with a better grade of petroleum coke and can handle higher currents than RP graphite electrodes. They offer a good balance of performance and cost and are widely used in many EAFs for steelmaking.

Ultra-High Power (UHP) graphite electrodes represent the pinnacle of graphite electrode technology. Made from expensive and scarce needle coke, UHP graphite electrodes have the lowest electrical resistance and the highest density. This allows them to conduct extremely high current densities, which translates to faster melt times and higher productivity in the most modern and powerful EAFs. For any operation focused on maximizing output and efficiency, UHP is the required standard.

How Do You Choose the Right Graphite Electrode for Your Electric Arc Furnace?

Choosing the correct grade graphite electrodes is not just about price; it’s a technical decision that impacts your furnace’s efficiency, productivity, and operational costs. Making the right choice ensures you get the performance you need without paying for capabilities you won’t use. As someone who consults with clients like Mark, I always start with a few key questions.

Here’s a practical checklist to guide your decision:

• What is your furnace type and capacity? The size of your arc furnace and its transformer rating are the primary determinants. A large, ultra-high power furnace requires a UHP graphite electrode to handle the electrical load. Using an RP or HP electrode in such a furnace would lead to rapid consumption and likely breakage.
• What are your operational parameters? You need to know the furnace’s secondary voltage and current. These figures directly determine the required current densities the graphite electrode must handle.
• What material are you melting? The type of charge, such as primarily scrap metal versus direct reduced iron (DRI), can affect the furnace environment and the stresses placed on the graphite electrode.
• What is the length of the electrode column? The total length of the connected electrodes and the strength of the electrode holder system influence the mechanical strength required from the graphite electrode to prevent breakage.
• What are your production goals? If your goal is maximum throughput and minimum tap-to-tap time, investing in UHP graphite electrodes is often the most economical choice in the long run, as their efficiency and lower consumption rate can offset their higher initial cost.

By matching the graphite electrode specifications to your furnace’s specific requirements, you ensure optimal performance. It’s a technical conversation worth having with a knowledgeable supplier. We often find that a detailed analysis of a client’s EAF can lead to recommendations that save them significant money over the course of a year, either by preventing costly failures or by improving melting efficiency.

What are the Key Properties to Look for in a Top-Tier Graphite Electrode?

Beyond the simple grade (RP, HP, UHP), several key physical and electrical properties define the quality and performance of a graphite electrode. When you receive a specification sheet from a supplier, these are the numbers that tell the real story. For a quality-sensitive buyer, understanding these metrics is non-negotiable.

Here are the critical properties to evaluate:

• Low Apparent Density: This is a primary indicator of quality. A higher density means the graphite electrode has fewer internal pores, which translates to greater mechanical strength and better resistance to oxidation. A dense graphite electrode will be consumed more slowly.
• Low Electrical Resistivity: This is perhaps the most important property. Lower resistance means less energy is lost as heat within the graphite electrode itself, and more electrical energy is delivered to the melt. This improves furnace efficiency and reduces overall energy consumption. Excellent electrical conductivity is the goal.
• High Flexural Strength: An arc furnace is a harsh environment. The graphite electrode column is subjected to intense mechanical stress from furnace movements, collapsing scrap, and electromagnetic forces. High flexural strength is essential to prevent the graphite electrode from breaking during operation, which is a major cause of downtime.
• High Thermal Conductivity: The tip of the graphite electrode is white-hot, while the other end is much cooler. The ability to conduct heat away from the tip efficiently helps manage this temperature gradient and reduces stress, preventing cracks. Excellent thermal performance is key.
• Low Coefficient of Thermal Expansion (CTE): A low CTE means the graphite electrode expands and contracts less when exposed to rapid temperature changes. This gives it superior thermal shock resistance, which is critical for surviving the violent temperature swings inside an EAF.

When you’re comparing suppliers, don’t just look at the price of graphite electrodes. Ask for the detailed specification sheets and compare these values. A reputable manufacturer will always provide this data and stand by it. As a factory, we provide batch-specific test reports to our clients, ensuring the high-quality graphite materials we ship meet or exceed the promised specifications. For particularly critical applications, we recommend our specialized Ultra high power graphite electrode specific calcined needle coke block, which forms the basis for electrodes with the absolute best properties.

Why are UHP Graphite Electrodes the Gold Standard for Modern EAFs?

In the world of modern steelmaking, efficiency is everything. The push for faster production, lower energy consumption, and higher-quality steel has made the Ultra-High Power (UHP) graphite electrode the undisputed champion. While HP and RP electrodes have their place, the most advanced and productive electric arc furnaces rely exclusively on UHP technology. The reason is simple: they enable furnaces to operate at their maximum potential.

The superiority of UHP graphite electrodes comes from the raw material: premium needle coke. This highly crystalline, needle-like form of petroleum coke allows us to manufacture a graphite electrode with an incredibly dense and uniform structure. This structure is what provides the highest performance characteristics. A UHP graphite electrode can handle higher current densities without overheating or cracking, allowing the furnace to pump in more power and smelt the scrap metal charge much faster. This directly reduces "tap-to-tap" time—the total time for one melting cycle—which is the single most important metric for a steel mill’s productivity.

Furthermore, the higher density and superior oxidation resistance of a UHP graphite electrode mean it gets consumed at a slower rate per ton of steel produced. While the initial purchase price is higher, the lower consumption rate and the increased furnace productivity often result in a lower overall cost per ton of steel. For a high-volume steel mill, these savings add up quickly. That’s why for anyone operating a modern, high-power EAF, the choice is clear. The investment in UHP graphite pays for itself through enhanced operational efficiency and the ability to produce high-quality steel reliably. We are proud to offer a full range of Ultra-high power graphite electrode options to meet the needs of the most demanding furnaces.

Can Graphite Electrodes Be Used in Applications Beyond the EAF?

While the graphite electrode is most famously associated with the electric arc furnace for steelmaking, its unique properties make it valuable in a range of other high-temperature industrial processes. Understanding these applications can open up new opportunities for distributors and showcase the versatility of these products. A graphite electrode is fundamentally a tool for delivering immense heat via electricity, and many industries require this.

Here are some other key applications where graphite electrodes are used:

• Ladle Furnaces: After primary melting in an EAF or Basic Oxygen Furnace, the molten steel is often transferred to a ladle furnace for refining. Here, a smaller set of graphite electrodes is used to precisely control the temperature of the liquid steel, allowing for alloying additions and chemistry adjustments to refine the steel to its final specifications.
• Submerged Arc Furnaces: These furnaces are used to produce silicon metal, ferroalloys (like ferrosilicon and ferrochrome), and phosphorus. In this setup, the tips of the electrodes are submerged in the raw material charge. The electricity flows through the material itself, generating heat. RP graphite electrodes or Söderberg (self-baking) carbon electrodes are common in these high-temperature applications.
• Electro-Slag Remelting (ESR): This is a secondary refining process used to produce ultra-clean, high-purity specialty steels and superalloys for the aerospace and tool industries. A graphite electrode can be used as a conductive consumable to melt the metal in a slag bath, which purifies it.
• Non-ferrous Metals Production: Similar furnace technologies are used to produce aluminum, magnesium, and other non-ferrous metals, where a conductive graphite electrode is often required.

The underlying need in all these processes is for a material with high conductivity and ability to withstand extreme heat and thermal stress. The principles are the same as in an EAF, but the scale and specific parameters differ. This is why we also manufacture other graphite products, like our versatile High strength graphite block, which can be machined into components for these and other high-temperature environments.

What are Common Sourcing Challenges and How Can You Partner with a Reliable Factory?

For a procurement officer like Mark, buying graphite electrodes from overseas can feel like navigating a minefield. From my position as a factory owner who exports globally, I am well aware of the pain points that buyers face. Inefficient communication, shipment delays, and concerns about product authenticity are real challenges. However, these can be overcome by finding and building a relationship with the right manufacturing partner.

Let’s address Mark’s pain points directly:

• Inefficient Communication: A common complaint is dealing with sales reps who lack technical knowledge. This creates frustrating delays and misunderstandings. Our approach: We ensure our international sales team is not just fluent in English but also deeply trained in the technical aspects of our graphite electrode products. They can discuss current densities, thermal and mechanical properties, and your furnace’s specific requirements intelligently. We believe in providing solutions, not just taking orders.
• Shipment Delays: A delayed shipment of graphite electrodes can bring a multi-million dollar steel mill to a halt. The consequences are enormous. Our solution: We have built a robust logistics department that works with proven, reliable freight forwarders. We provide transparent communication, including production updates, vessel tracking, and clear documentation, to ensure you know where your order is at all times. Proactive planning is key to meeting production schedules.
• Certificate Fraud: The fear of receiving a fraudulent ISO certificate or a fake material test report is valid and can lead to catastrophic failures. Our commitment: We operate with complete transparency. Every shipment is accompanied by authentic, verifiable certifications for quality management (like ISO 9001) and batch-specific material test reports detailing the physical properties of the graphite electrode you are receiving. We welcome third-party inspections at our facility before shipment. Building trust is the foundation of our B2B model.

Finding a true partner, not just a supplier, means looking for a factory that understands your business, communicates proactively, and stands behind its product with verifiable quality. A factory with a long history, multiple production lines, and a global client base is a good indicator of reliability.

What Factors Determine the Price of Graphite Electrodes?

The price of graphite electrodes can be volatile, and understanding the factors that influence it helps with budgeting and negotiation. It’s not an arbitrary number; it’s a reflection of complex market dynamics and production costs. As a manufacturer, these are the key variables we manage.

1. Cost of Raw Materials: This is the single biggest factor. The price of needle coke, the essential raw material for UHP graphite electrodes, is globally traded and can fluctuate significantly based on supply and demand. Since only a few refineries produce high-quality needle coke, its price has a massive impact on the final cost of a UHP graphite electrode. The cost of lower-grade petroleum coke for RP and HP electrodes also varies.
2. Energy Costs: The graphitization process is incredibly energy-intensive. Heating electrodes to 3000°C consumes vast amounts of electricity. Therefore, regional electricity prices play a significant role in the production cost of every single graphite electrode.
3. Manufacturing Complexity and Grade: The more complex the process and the higher the grade, the higher the cost. UHP electrodes require the best raw materials, multiple baking cycles, and the most precise machining, making them inherently more expensive to produce than RP electrodes.
4. Global Supply and Demand: The steelmaking industry is the primary consumer of graphite electrodes. When global steel production is high, demand for electrodes rises, which can drive up prices. Conversely, a slowdown in construction and manufacturing can soften demand and prices.
5. Logistics and Shipping: The cost of packing (in wooden crates), inland transportation to the port, and ocean freight to countries like the USA is a significant component of the final delivered price.

As a large-scale factory, we can mitigate some of these costs through bulk purchasing of raw materials and efficient production. This allows us to offer competitive pricing while maintaining the high-quality standards our customers in North America, Europe, and Australia expect.

What’s Next? The Future of Graphite Electrode Technology in Steel Production

The arc furnace and the graphite electrode are not static technologies. The industry is constantly evolving, driven by the need for greater efficiency, lower environmental impact, and higher-quality materials. As we look to the future, several exciting trends are shaping the world of graphite electrodes. The global push for "green steel" is a major driver. EAF steelmaking, which primarily uses recycled scrap metal, has a much lower carbon footprint than traditional blast furnace methods. As this trend accelerates, the demand for high-performance graphite electrodes will only grow.

We are seeing continuous innovation in graphite electrode manufacturing. Research is focused on developing even more advanced needle cokes and binder systems to create electrodes with even lower electrical resistance and greater mechanical strength. Another key area of development is specialized coatings. Applying a protective, refractory coating to the outside of a graphite electrode can significantly reduce sidewall oxidation inside the furnace, leading to lower consumption rates and further cost savings.

Furnace technology itself is also advancing, with more intelligent control systems that can optimize power input and reduce electrical and thermal stresses on the graphite electrode column. These "smart" EAFs will require equally advanced electrodes that can provide consistent, predictable performance. At our factory, we are not just producing for today; we are investing in the R&D that will meet the demands of the next generation of steelmaking. The future is electric, and the humble graphite electrode will remain at the very heart of it.

Key Takeaways to Remember

• Function is Critical: The graphite electrode is an essential consumable that delivers the electrical power needed to melt metal in an electric arc furnace.
• Grade Matters: Choose the right grade (RP, HP, or UHP) based on your furnace’s power and productivity requirements to ensure optimal performance and cost-effectiveness.
• Quality is in the Specs: Look beyond the grade and evaluate key properties like density, electrical resistance, and flexural strength. These numbers tell the true story of an electrode’s quality.
• UHP for Modern Mills: For high-production, modern EAFs, UHP graphite electrodes offer the best performance, leading to faster melt times and a lower cost per ton of steel.
• Partnership Over Price: Overcome sourcing challenges by partnering with a transparent, communicative, and reliable factory that provides verifiable certifications and stands behind its product.
